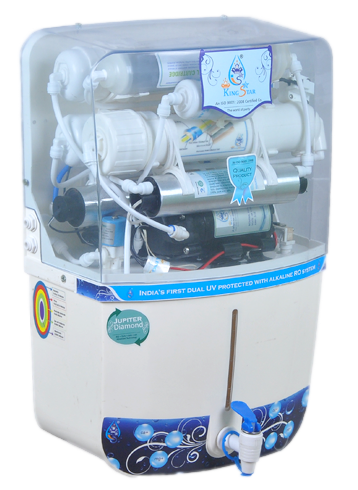

| Model : jupiter Diamond | |
|---|---|
| Production Capacity | 12-15 LTR / Hour |
| Installation | Wall Mounted / Table Top |
| Technology | RO + UV + BIOPURE + UF TECHNOLOGY |
| Storage Tank Capacity | 11 LTR |
| Filteration Media | Pre Sedimment filter, In-line Micron sediment filter In-Line Pre Carbon, Pre UV, RO Membrane, Post UV, Biopure (Antibacterial Rice Balls, Mineral balls, Activated Alumina Balls, Activated Coconut Carbon), UF |
| Operating Pressure | 10 / 100 PSI |
| AC Mains | 180-230V |
| TDS Reduction | 92-95% |
| Power Consumption | 30 Watt |
| Expected Life of Sediment Filter | 4000 Litres |
| Dimensions | 520 X 355 X 195 (mm) |
| Net Weight | 12.5 KGS |
| MRP |
PreSediment filter + In-line Micron sediment filter + In-line Pre Carbon + PreUV + RO Membrane + PostUV + BioPure + UF
This purifier is built with 12 filtration stage consisting of Reverse Osmosis, Double UV Protection & Minerals enhancement Technology
RO Membrane
Reverse Osmosis is a process in which dissolved inorganic solids (such as salts) are removed from a solution (such as water). This is accomplished by household water pressure pushing the tap water through a semi permeable membrane. The membrane (which is about as thick as cellophane) allows only the water to pass through, not the impurities or contaminates. These impurities and contaminates are flushed down the drain.
Suitable for TDS value from Normal to High
This purifier can be used in areas where the TDS count is either Normal or High.
Pre-Sediment Filter
The outer layer is rated at 50 microns. The subsequent layers are rated at 30 microns, 10 microns, and finally 5 microns. The result is a longer filter life and higher flow rates (less pressure drop). The polypropylene media is highly resistant to bacteria, making this an excellent choice for water treatment.
Suitable for TDS value from Normal to High
This purifier can be used in areas where the TDS count is either Normal or High.
In-line Micron sediment filter
This 1micron sediment filter is made by Anti-Bacteria. High capacity filter removes dusts, particles and rusts. Anti-Bacterial: 99.70%, Use 100% pure PP fine fiber.
In-line Pre Carbon
The water passes through specially treated, silver impregnated activated carbon filter block, in order to remove organic impurities, free gases and odour.
UV (Pre UV & Post UV)
Ultraviolet (UV) is a safe, clean, easy-to-maintain method of assuring that water is free of bacteria & Viruses. UV Water Purification uses Ultraviolet light, just like sunlight, to kill micro-organisms that may be in the water. It is a proven technology that has no significant drawbacks. The process is simple but effective, destroying 99.99 percent of harmful microorganisms without adding chemicals to the water.
UF
Ultrafiltration (UF) is used to remove essentially all colloidal particles (0.001 to 1.0 microns) from water and some of the largest dissolved contaminants. UF membranes are used where essentially all colloidal particles (including most pathogenic organisms) must be removed, but most of the dissolved solids may pass through the membrane without causing problems downstream or in the finished water. UF will remove most turbidity from water. Even if the UV water purifier kills the germs in the water, their bodies remain in the water, whereas in UF water purifier all germs and viruses are physically removed from the water and flushed out to the drain when the UF water purifier is flush cleaned online.
BioPure Filter
BioPure filter cartridge consists of below filtration stages :
Food grade Water tank & unbreakable body.
As the water tank is made up of Food grade, taste of water is not affected by its tank & purity also remains the same. The Body is made up of ABS unbreakable Plastic, which will not be affected by hot climate.
